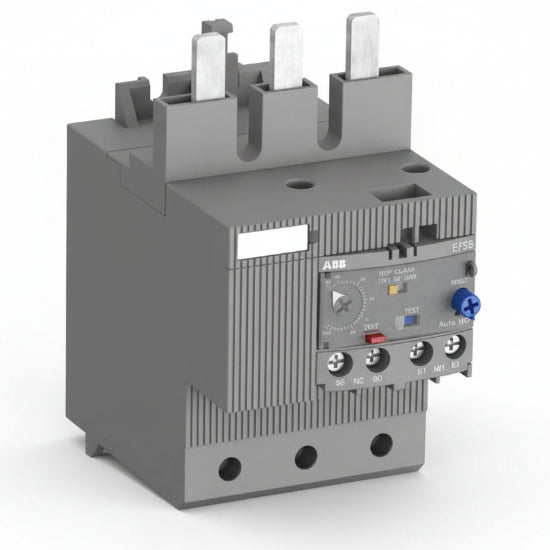

Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
EF370-380
Availability:
1
In stock
Product type:
Overload Relays
- $785.41
- $785.41
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number |
ABB EF370-380
|
| Order Code | 1SAX611001R1101 |
| Adjustment Range | 115.0 to 380.0 Amps |
| Trip Class | Selectable: Class 10E, 20E, or 30E |
| Rated Operational Voltage | 1000 V AC (Main Circuit) / 600 V AC/DC (Auxiliary) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Compatible Contactors | A210, A260, A300, AF210, AF260, AF300, AF265, AF305, AF370 |
| Reset Options | Manual or Automatic (selectable) |
| Protection Features | Phase failure, unbalance, and temperature compensation |
