Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
EF65-56
Availability:
2
In stock
Product type:
Overload Relays
- $302.51
- $302.51
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number |

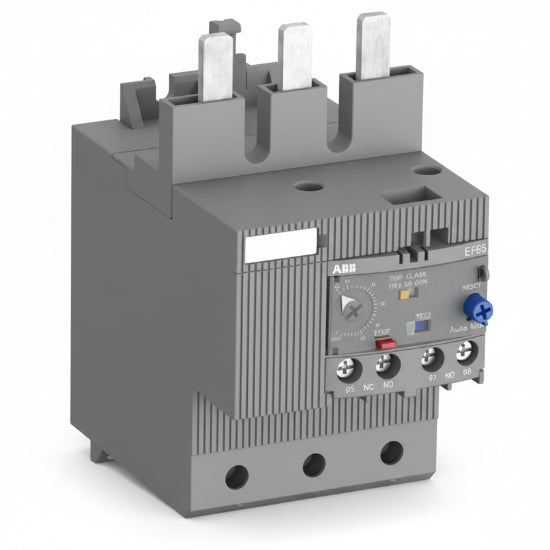

ABB EF65-56
(Order Code: 1SAX331001R1102) |
| Current Setting Range | 20.0 to 56.0 Amps |
| Trip Class | Selectable: Class 10E, 20E, or 30E |
| Rated Operational Voltage | 1000 V AC (Main Circuit) / 600 V AC/DC (Auxiliary) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Reset Options | Manual or Automatic (selectable) |
| Protection Features | Phase failure, unbalance, and temperature compensation |
| Standards & Certifications | ATEX, IECEx, UL, CSA, CE, CCC |
