Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
9T58K0046
Availability:
1
In stock
Product type:
Industrial Transformers
- $112.01
- $112.01
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100

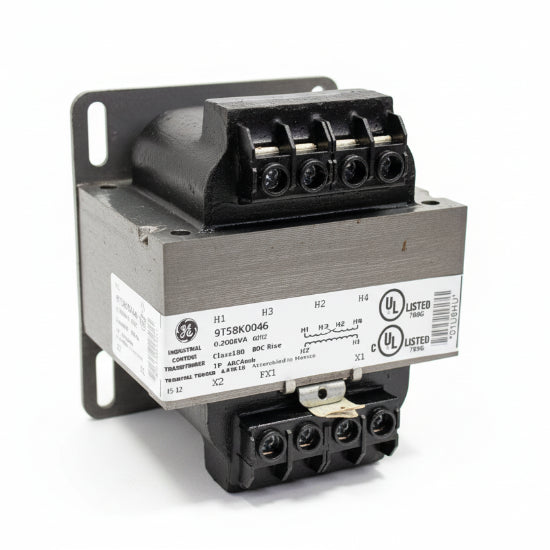

| Manufacturer & Part Number | ABB Electrification 9T58K0046 |
| Product Line | Type IP Industrial Control Transformer |
| Capacity | 200 VA (0.2 kVA) |
| Frequency | 60 Hz |
| Primary Voltage | 240 x 480 V (Supports 220/230/440/460 V) |
| Secondary Voltage | 120 V (Supports 110/115 V) |
| Insulation Class | 180°C (Class H) with an 80°C temperature rise |
| Frame Size | 8175 Frame |
| Termination Style | Terminal Board with pressure plate screw terminals |
