Product appearance may vary. Refer to the description and specs for complete information

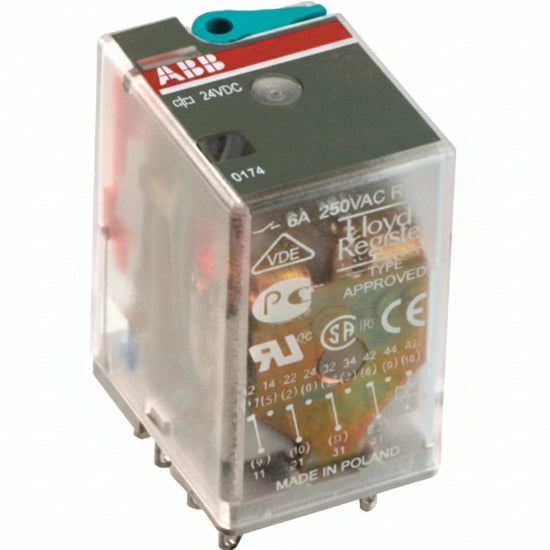

Manufacturing Part #
1SVR405612R2100
Availability:
10
In stock
Product type:
Interface Relays
- $13.38
- $13.38
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number | 1SVR405611R2100 |
| Extended Product Type | CR-M120AC2L |
| Contact Configuration | 2 c/o (DPDT / 2 Form C) |
| Control Coil Voltage | 120V AC (50/60 Hz) |
| Contact Current Rating | 12A at 250V AC |
| Coil Resistance | 3,770 Ohms to 4,430 Ohms (+/- 10% at 20°C) |
| Response Time | 10 ms to 12 ms (typical) |
| Mechanical Durability | 20,000,000 cycles |
| Electrical Durability | 100,000 operations (at rated load) |
| Operating Temperature | -40°C to +70°C |
