Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
TA200DU135
Availability:
8
In stock
Product type:
Overload Relays
- $240.43
- $240.43
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100

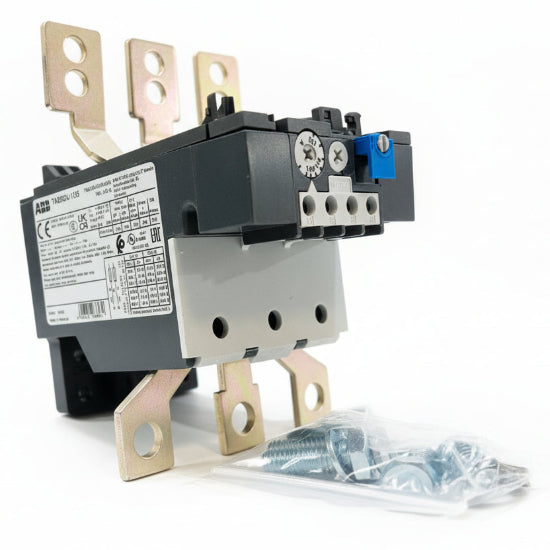

| Manufacturer Part Number | ABB TA200DU135 |
| Order Code | 1SAZ421201R1003 |
| Current Setting Range | 100 to 135 Amps |
| Trip Class | Class 10A |
| Auxiliary Contacts | 1 NO + 1 NC |
| Rated Operational Voltage | 690 V AC (Main) / 440–500 V DC/AC (Auxiliary) |
| Reset Options | Manual or Automatic (selectable) |
| Compatible Contactors | A145, A185, AF145, AF185, AF190, AF205 |
| Protection Features | Phase failure and load unbalance sensitivity |
| Standard Certifications | UL, CSA, CE, IEC/EN 60947 |
| Operating Temp | -25°C to +55°C (Ambient compensated) |
