Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
TF65-40
Availability:
5
In stock
Product type:
Overload Relays
- $102.21
- $102.21
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100

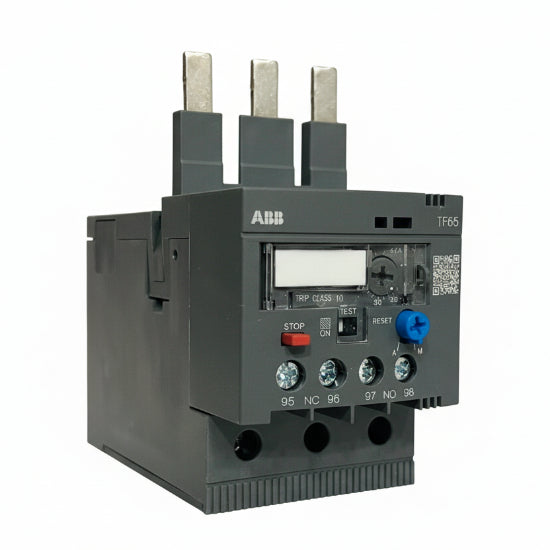

| Manufacturer Part Number | ABB TF65-40 |
| Order Code | 1SAZ811201R1003 |
| Current Setting Range | 30.0 to 40.0 Amps |
| Trip Class | Class 10 |
| Rated Operational Voltage | 690 V AC (Main Circuit) / 600 V AC/DC (Auxiliary) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Compatible Contactors | AF40, AF52, AF65 |
| Reset Options | Manual or Automatic (selectable) |
| Protection Features | Phase failure sensitivity and temperature compensation |
| Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
