Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
TF65-47
Availability:
2
In stock
Product type:
Overload Relays
- $112.92
- $112.92
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100

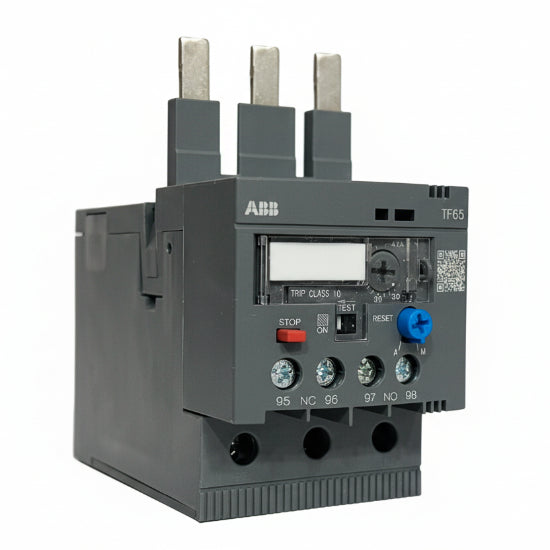

| Manufacturer Part Number | ABB TF65-47 |
| Order Code | 1SAZ811201R1004 |
| Current Setting Range | 36.0 to 47.0 Amps |
| Trip Class | Class 10 |
| Rated Operational Voltage | 690 V AC (Main Circuit) / 600 V AC/DC (Auxiliary) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Compatible Contactors | Direct mount for AF40, AF52, and AF65 contactors |
| Reset Options | Manual or Automatic (selectable) |
| Protection Features | Phase failure sensitivity and temperature compensation |
| Operating Temperature | -25°C to +60°C (Ambient compensated) |
