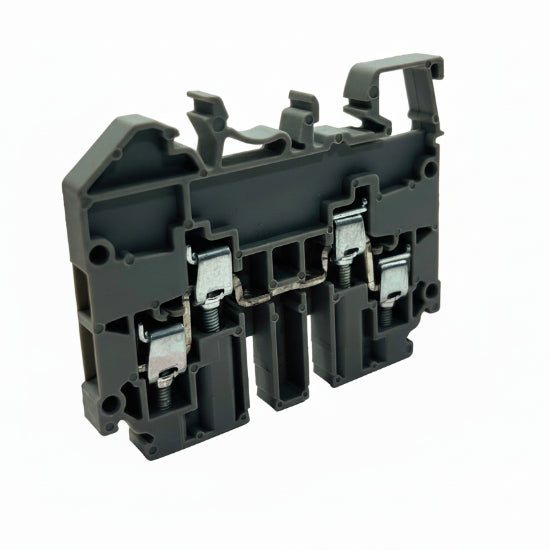

Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
CMC2-2
Availability:
40
In stock
Product type:
Terminal Blocks
- $3.19
- $3.19
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number | CMC2-2 |
| Type | Multi-Connection Feed-Through |
| Number of Connections | 4 (Two identical clamps on each side) |
| Connection Method | Screw Clamp (M3 Screw) |
| Wire Gauge Range | 22 – 10 AWG (0.2 – 4mm²) |
| Voltage Rating | 600 V (UL/CSA) / 630 V (IEC) |
| Current Rating | 35 A (UL/CSA) / 32 A (IEC) |
| Torque Rating | 7 lb-in (0.5 N·m) |
| Mounting Type | DIN Rail (35 mm or 32 mm) |
| Housing Material | Polyamide 6.6 (Nylon) |
