Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #

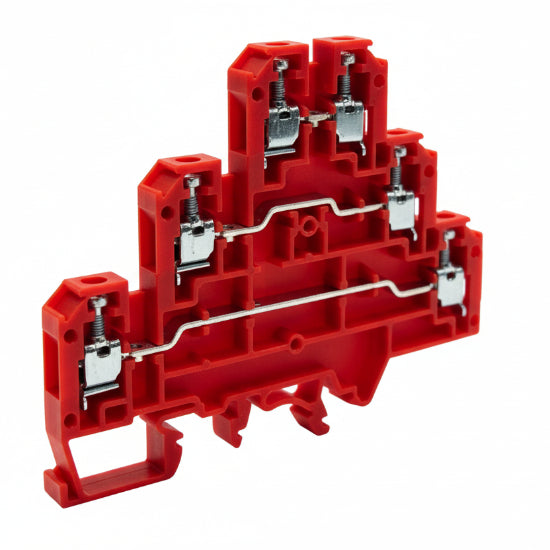

CTL2.5U/R
Availability:
50
In stock
Product type:
Terminal Blocks
- $6.93
- $6.93
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number | CTL2.5U/R |
| Alternate Part Number | 2510411 (Series ID) |
| Type | Triple-Level Feed-Through |
| Color | Red |
| Connection Method | Screw Clamp (M2.5 Screw) |
| Wire Gauge Range | 22 – 12 AWG (0.2 – 2.5mm²) |
| Voltage Rating | 300 V (UL/CSA) / 500 V (IEC) |
| Current Rating | 25 A (UL/CSA) / 24 A (IEC) |
| Housing Material | Polyamide 6.6 (PA66) |
| Torque Rating | 4.5 lb-in (0.4 N·m) |
| Stripping Length | 9 mm |
| Mounting Type | DIN Rail (35 mm or 32 mm) |
