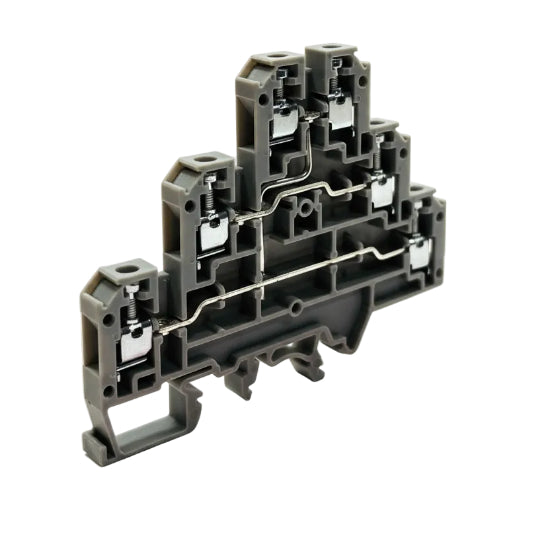

Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
CTL2.5U(I.S)
Availability:
50
In stock
Product type:
Terminal Blocks
- $8.80
- $8.80
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number |
CTL2.5U (I.S)
|
| Numeric ID | 2510411 |
| Type | Triple Level Feed-Through (Internally Shorted) |
| Connection Method | Screw Clamp (M2.5 Screw Size) |
| Number of Positions | 6 (3 levels, all connected) |
| Wire Gauge Range | 22–12 AWG (0.2–2.5
|
| Voltage Rating | 150 V (UL/CSA) / 500 V (IEC) |
| Current Rating | 25 A (UL/CSA) / 24 A (IEC) |
| Housing Material | Polyamide 6.6 (PA66) |
| Torque Rating | 4.5 lb-in (0.4 N·m) |
| Stripping Length | 9 mm |
