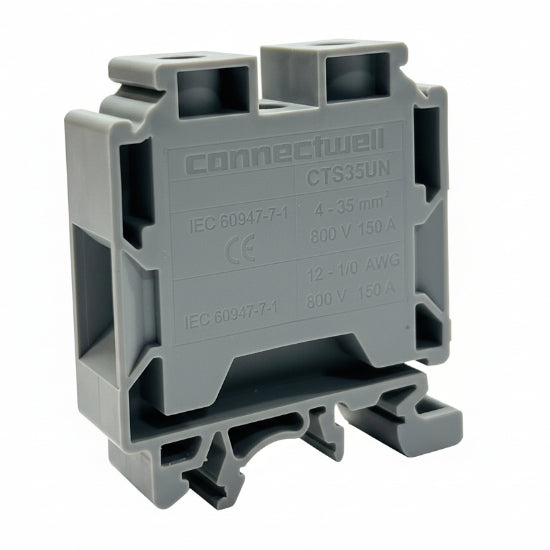

Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
CTS35UN
Availability:
50
In stock
Product type:
Terminal Blocks
- $6.16
- $6.16
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number | CTS35UN |
| Type | Feed-Through Terminal Block |
| Connection Method | Screw Clamp |
| Wire Gauge Range | 12 – 1/0 AWG (4 – 35 mm²) |
| Voltage Rating | 600 V (UL/CSA) / 1000 V (IEC) |
| Current Rating | 150 A (UL) / 125 A (IEC) |
| Housing Material | Polyamide 6.6 |
| Torque Rating | 25 lb-in (2.5 N·m) to 50 lb-in |
| Stripping Length | 15 mm to 18 mm |
| Mounting Style | DIN Rail (32 mm or 35 mm) |
