Product appearance may vary. Refer to the description and specs for complete information

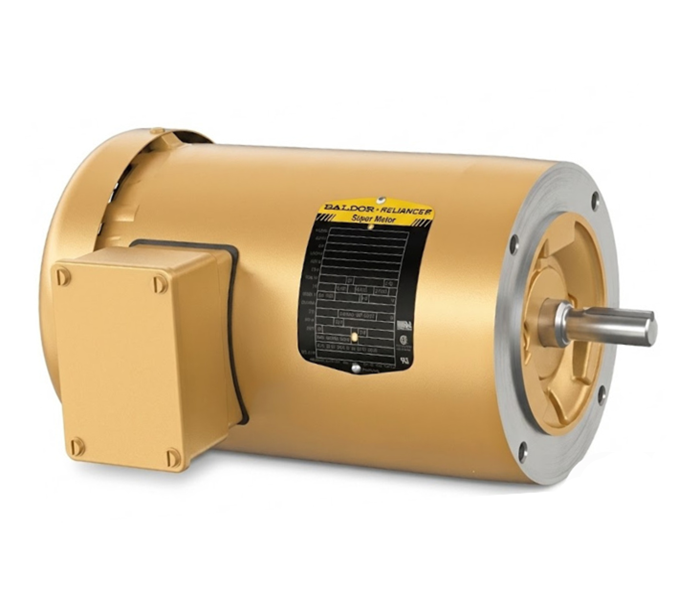

Baldor AC Motor CEM3218T delivers reliable 5 HP performance at 1750 RPM with three-phase 60Hz operation. Features 184TC frame, 230/460V dual voltage capability, and OPSB enclosure rated for Type 3640M duty. Freight shipping required.
Manufacturing Part #
CEM3218T
Availability:
1
In stock
Product type:
Motors
- $1,254.22
- $1,254.22
- (-0%)
- Unit price
- per
Shipping Details
This heavy-duty item requires specialized freight shipping. Please note that additional freight charges apply and are to be paid by the customer.
Baldor AC Motor CEM3218T delivers reliable 5 HP performance at 1750 RPM with three-phase 60Hz operation. Features 184TC frame, 230/460V dual voltage capability, and OPSB enclosure rated for Type 3640M duty. Freight shipping required.
| Manufacturer | Baldor-Reliance (ABB) |
| Part Number | CEM3218T |
| Spec Number | 36B102S270G1 |
| Output @ Frequency | 5.00 HP @ 60 Hz |
| Phase | 3-Phase |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 Hz |
| Full Load Speed | 1750 RPM |
| Voltage @ Frequency | 208-230 V @ 60 Hz / 460 V @ 60 Hz |
| Frame Size | 184TC |
| Enclosure Type | OPSB (Open Slotted Band) / ODP |
| Mounting | C-Face with Rigid Base (Foot Mount) - F1 Assembly |
| Full Load Amps | 13.2 A @ 230 V / 6.6 A @ 460 V |
| Amps @ 208V | 14.0 A |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Efficiency @ 100% Load | 89.5% (NEMA Premium) |
| Power Factor | 80 (at 100% Load) |
| Bearings | Ball Bearing (6206 DE / 6205 ODE) |
| Inverter Ready | Yes (VPWM Inverter Ready) |
| Frame Material | Steel |
| Net Weight | 87 lbs |
| Application | General purpose, Pumps, Fans, Compressors, Conveyors, and Machine Tools requiring C-face mounting in relatively clean and dry environments. |
