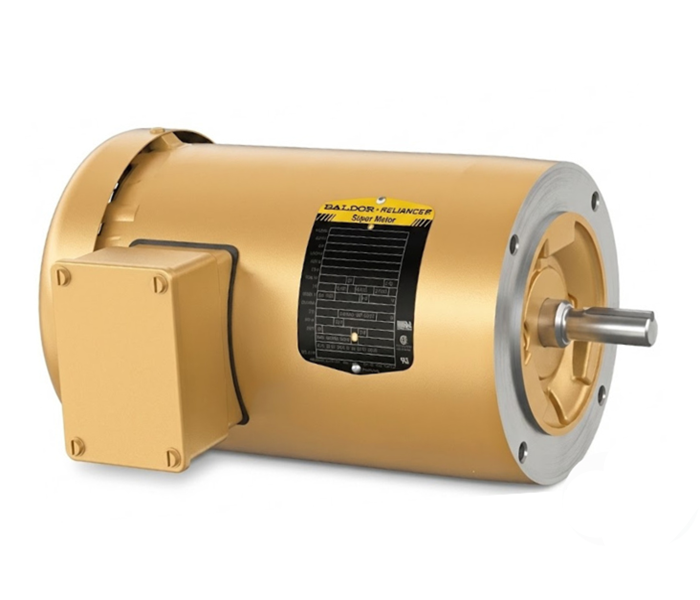

Product appearance may vary. Refer to the description and specs for complete information
Baldor AC Motor VEM3710T delivers 7.5 HP at 1770 RPM with three-phase power. Features a 213TC frame, TEFC enclosure, and dual voltage (230/460V) capability. Freight shipping required.
Manufacturing Part #
VEM3710T
Availability:
Out Of Stock
Product type:
Motors
- $1,815.84
- $1,815.84
- (-0%)
- Unit price
- per
Shipping Details
This heavy-duty item requires specialized freight shipping. Please note that additional freight charges apply and are to be paid by the customer.
Baldor AC Motor VEM3710T delivers 7.5 HP at 1770 RPM with three-phase power. Features a 213TC frame, TEFC enclosure, and dual voltage (230/460V) capability. Freight shipping required.
| Manufacturer | Baldor-Reliance (ABB) |
| Part Number | VEM3710T |
| Spec Number | 37A003L864G1 (Common Specification) |
| Output @ Frequency | 7.50 HP @ 60 Hz |
| Phase | 3-Phase |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 Hz |
| Full Load Speed | 1770 RPM |
| Voltage @ Frequency | 208-230 V @ 60 Hz / 460 V @ 60 Hz |
| Frame Size | 213TC |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) |
| Mounting | C-Face / Footless (No Rigid Base) |
| Full Load Amps | 19.0 A @ 230 V / 9.5 A @ 460 V |
| Amps @ 208V | 20.0 A |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Efficiency @ 100% Load | 91.7% (NEMA Premium) |
| Power Factor | 80 - 81 (at 100% Load) |
| Bearings | Ball Bearing (6307 DE / 6206 ODE) |
| Inverter Ready | Yes (VPWM Inverter Ready, CT 10:1) |
| Frame Material | Steel |
| Net Weight | 127 - 129 lbs |
| Application | Pumps, Fans, Machine Tools, Gear Reducers, and other applications requiring a C-face mount without a footed base. |
