Product appearance may vary. Refer to the description and specs for complete information

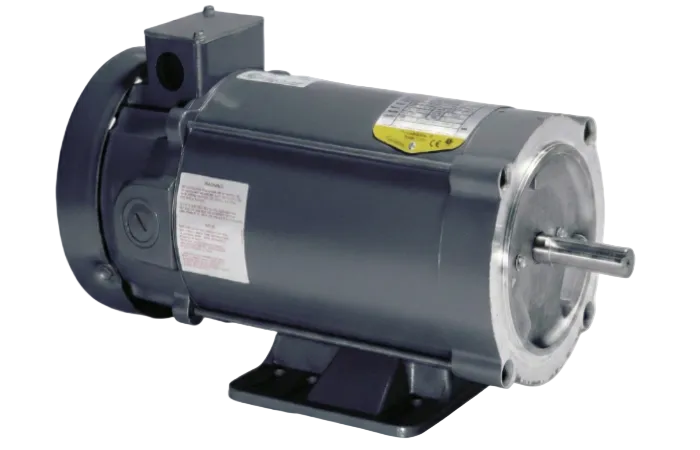

Baldor-Reliance CDP3330 0.5 HP DC motor, 1750 RPM, 56C frame, TENV enclosure. Freight shipping required.
Manufacturing Part #
CDP3330
Availability:
1
In stock
Product type:
Motors
- $1,047.19
- $1,047.19
- (-0%)
- Unit price
- per
Shipping Details
This heavy-duty item requires specialized freight shipping. Please note that additional freight charges apply and are to be paid by the customer.
Baldor-Reliance CDP3330 0.5 HP DC motor, 1750 RPM, 56C frame, TENV enclosure. Freight shipping required.
| Manufacturer | Baldor-Reliance (ABB) |
| Part Number (MPN) | CDP3330 |
| Motor Type | DC Permanent Magnet (PM), Brushed |
| Output Horsepower (HP) | 0.50 HP (1/2 HP) |
| Base/Nominal Speed | 1750 RPM |
| Armature Voltage (VDC) | 90 VDC |
| Full Load Armature Current | 4.8 A |
| Frame Size | 56C |
| Enclosure Type | TENV (Totally Enclosed Non-Ventilated) - IP44 |
| Mounting | C-Face with Rigid Base (Foot Mount) |
| Service Factor | 1.00 |
| Insulation Class | Class F |
| Torque Rating | 3.00 ft-lb (at Base Speed) |
| Speed Control Rating | 20:1 Constant Torque Speed Range (Designed for SCR drives) |
| Bearings | Ball Bearing (DE: 6203 / ODE: 6203 - Double Sealed) |
| Shaft Diameter | 0.625 inches (5/8") |
| Frame Material | Steel (Rolled Steel) |
| Net Weight | 31 - 32 lbs. |
| Applications | Conveyors, Mixers, Packaging Machinery, and other applications requiring precise variable speed and constant torque from an SCR drive. |
