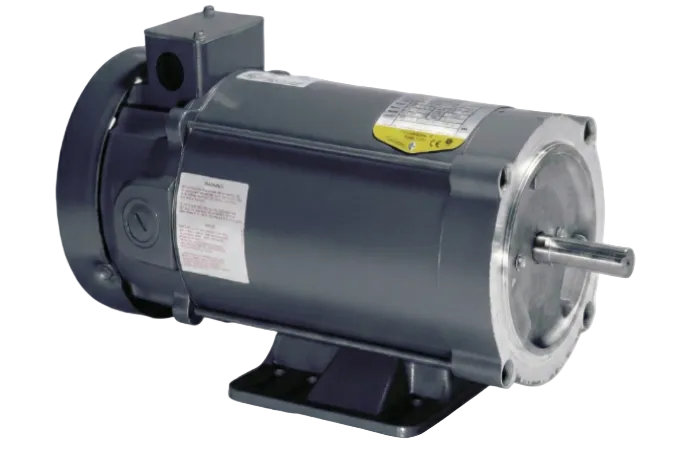

Product appearance may vary. Refer to the description and specs for complete information
Baldor-Reliance CDP3455 1 HP DC motor, 1750 RPM, 56C frame, TEFC enclosure. Freight shipping required.
Manufacturing Part #
CDP3455
Availability:
Out Of Stock
Product type:
Motors
- $1,547.08
- $1,547.08
- (-0%)
- Unit price
- per
Shipping Details
This heavy-duty item requires specialized freight shipping. Please note that additional freight charges apply and are to be paid by the customer.
Baldor-Reliance CDP3455 1 HP DC motor, 1750 RPM, 56C frame, TEFC enclosure. Freight shipping required.
| Manufacturer | Baldor-Reliance (ABB) |
| Part Number (MPN) | CDP3455 |
| Motor Type | DC Permanent Magnet (PM), Brushed |
| Output Horsepower (HP) | 1.00 HP |
| Base/Nominal Speed | 1750 RPM |
| Armature Voltage (VDC) | 180 VDC |
| Full Load Armature Current | 5.0 A |
| Frame Size | 56C |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) - IP44 |
| Mounting | C-Face with Rigid Base (Foot Mount) - F1 Assembly |
| Service Factor | 1.00 |
| Insulation Class | Class F |
| Full Load Torque | 6.03 lb-ft (at 1720 RPM) |
| Speed Control Rating | 20:1 Constant Torque Speed Range (Designed for SCR drives) |
| Bearings | Ball Bearing (DE: 6203 / ODE: 6203 - Double Sealed) |
| Shaft Diameter | 0.625 inches (5/8") |
| Frame Material | Steel (Rolled Steel) |
| Net Weight | 43 - 44 lbs |
| Applications | Conveyors, Extruders, Mixers, Packaging Machinery, and applications requiring precise variable speed and constant torque from an SCR drive. |
