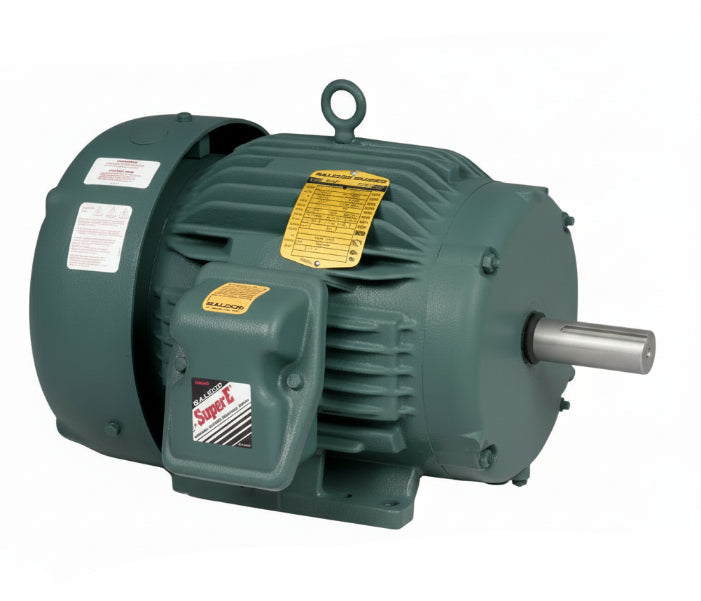

Baldor Reliance ECP2333T 15 HP industrial electric motor, 3-phase, 60Hz, 1765 RPM. Rated for 230/460V with 18.1 FLA. TEFC enclosure, 254T frame, 4-pole design. Specification P36G3503. Freight shipping required.
Manufacturing Part #
ECP2333T
Availability:
1
In stock
Product type:
Motors
- $3,399.91
- $3,399.91
- (-0%)
- Unit price
- per
Shipping Details
This heavy-duty item requires specialized freight shipping. Please note that additional freight charges apply and are to be paid by the customer.
Baldor Reliance ECP2333T 15 HP industrial electric motor, 3-phase, 60Hz, 1765 RPM. Rated for 230/460V with 18.1 FLA. TEFC enclosure, 254T frame, 4-pole design. Specification P36G3503. Freight shipping required.
| Manufacturer | Baldor-Reliance (ABB) |
| Part Number (MPN) | ECP2333T |
| Spec Number | 09J371T597 (Common Specification) |
| Output @ Frequency | 15.00 HP @ 60 Hz |
| Phase | 3-Phase |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 Hz |
| Full Load Speed | 1765 RPM |
| Voltage @ Frequency | 208-230 V @ 60 Hz / 460 V @ 60 Hz |
| Frame Size | 254T |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) - IP55 |
| Mounting | Rigid Base (Foot Mount) - F1 Assembly |
| Full Load Amps | 36.2 A @ 230 V / 18.1 A @ 460 V |
| Amps @ 208V | 38.0 A |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Efficiency @ 100% Load | 92.4% (NEMA Premium) |
| Power Factor | 84 (at 100% Load) |
| Bearings | Ball Bearing (6309 DE / 6309 ODE) |
| Frame Material | Cast Iron (Severe Duty Construction) |
| Inverter Ready | Yes (VPWM Inverter Ready, T3C Temp Code) |
| Net Weight | 319 lbs |
| Application | Severe Duty environments such as Chemical, Oil & Gas, Mining, Pulp & Paper, and Waste Management. |
