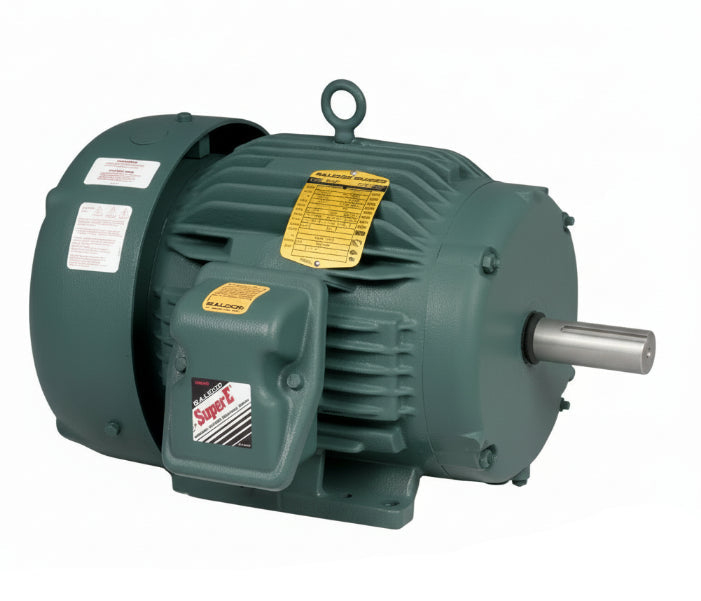

Baldor Reliance ECP3584T 1.5 HP three-phase industrial electric motor rated for 60Hz operation. Features 1755 RPM, 4-pole design with TEFC enclosure suitable for demanding applications. Dual voltage capability (208-230V/460V) with 2.1 FLA. Frame 145T, specification P36G3503. Freight shipping required.
Manufacturing Part #
ECP3584T
Availability:
1
In stock
Product type:
Motors
- $1,316.62
- $1,316.62
- (-0%)
- Unit price
- per
Shipping Details
This heavy-duty item requires specialized freight shipping. Please note that additional freight charges apply and are to be paid by the customer.
Baldor Reliance ECP3584T 1.5 HP three-phase industrial electric motor rated for 60Hz operation. Features 1755 RPM, 4-pole design with TEFC enclosure suitable for demanding applications. Dual voltage capability (208-230V/460V) with 2.1 FLA. Frame 145T, specification P36G3503. Freight shipping required.
| Manufacturer | Baldor-Reliance (ABB) |
| Part Number (MPN) | ECP3584T |
| Product Series | Super-E® Severe Duty (NEMA Premium) |
| Output @ Frequency | 1.50 HP @ 60 Hz |
| Phase | 3-Phase |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 Hz (4-Pole) |
| Full Load Speed | 1760 - 1770 RPM |
| Voltage @ Frequency | 208-230 V @ 60 Hz / 460 V @ 60 Hz |
| Frame Size | 145T |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) - IP55 |
| Mounting | Rigid Base (Foot Mount) - F1 Assembly |
| Full Load Amps | 4.6 A @ 208 V / 4.2 A @ 230 V / 2.1 A @ 460 V |
| Service Factor | 1.15 |
| Insulation Class | Class F (Operating within Class B temperature limits) |
| Efficiency @ 100% Load | 88.5% (NEMA Premium) |
| Power Factor | 72 - 76 (at 100% Load) |
| Bearings | Ball Bearing (6205 DE / 6205 ODE - Regreasable) |
| Frame Material | Cast Iron |
| Inverter Ready | Yes (VPWM Inverter Ready, T4 Temp Code) |
| Net Weight | 69 - 72 lbs |
| Application | Severe Duty environments such as Chemical, Oil & Gas, Mining, Pulp & Paper, and Waste Management. |
