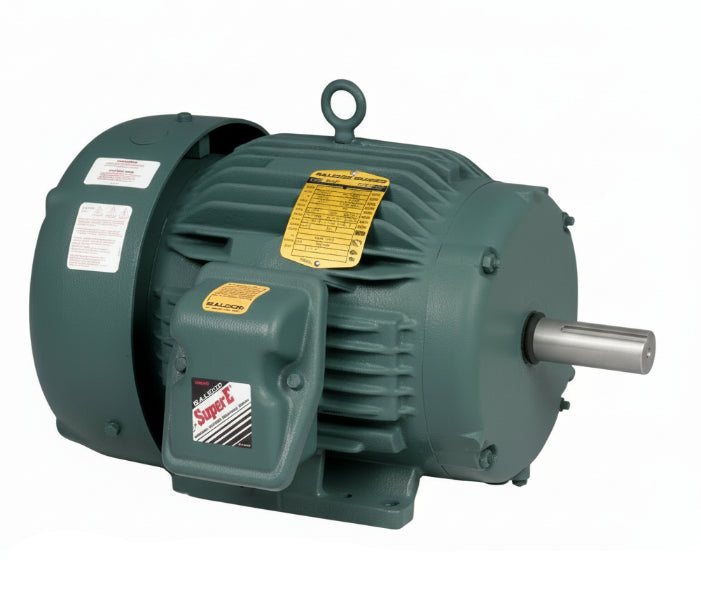

Baldor Reliance ECP3661T 3-phase industrial electric motor rated at 3 HP with 1755 RPM. Features 208-230/460V dual voltage capability, 4.1 FLA, 4-pole design, and TEFC enclosure for reliable operation in demanding environments. Frame 182T, specification P36G3503. Freight shipping required.
Manufacturing Part #
ECP3661T
Availability:
1
In stock
Product type:
Motors
- $1,738.96
- $1,738.96
- (-0%)
- Unit price
- per
Shipping Details
This heavy-duty item requires specialized freight shipping. Please note that additional freight charges apply and are to be paid by the customer.
Baldor Reliance ECP3661T 3-phase industrial electric motor rated at 3 HP with 1755 RPM. Features 208-230/460V dual voltage capability, 4.1 FLA, 4-pole design, and TEFC enclosure for reliable operation in demanding environments. Frame 182T, specification P36G3503. Freight shipping required.
| Manufacturer | Baldor-Reliance (ABB) |
| Part Number (MPN) | ECP3661T |
| Spec Number | 06H483X181G2 (or similar) |
| Output @ Frequency | 3.00 HP @ 60 Hz |
| Phase | 3-Phase |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 Hz (4-Pole) |
| Full Load Speed | 1755 RPM |
| Voltage @ Frequency | 208-230 V @ 60 Hz / 460 V @ 60 Hz |
| Frame Size | 182T |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) - IP55 |
| Mounting | Rigid Base (Foot Mount) - F1 Assembly |
| Full Load Amps | 8.6-8.2 A @ 208-230 V / 4.1 A @ 460 V |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Efficiency @ 100% Load | 89.5% (NEMA Premium) |
| Power Factor | 77 (at 100% Load) |
| Bearings | Ball Bearing (6206 DE / 6206 ODE) |
| Frame Material | Cast Iron (Severe Duty Construction) |
| Inverter Ready | Yes (VPWM Inverter Ready, T3C Temp Code) |
| Net Weight | 110 lbs. |
| Application | Severe Duty environments such as Chemical, Oil & Gas, Mining, Pulp & Paper, and Waste Management. |
