Product appearance may vary. Refer to the description and specs for complete information

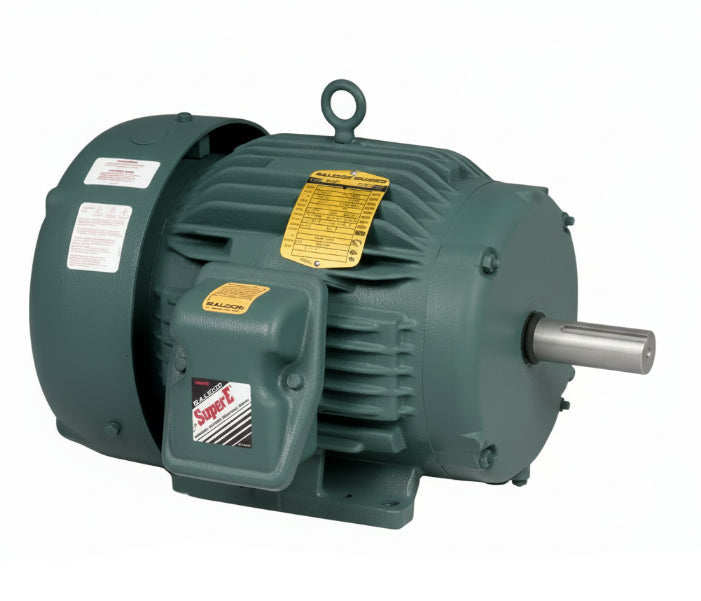

Baldor Reliance ECP3770T 7.5 HP three-phase industrial motor rated for 230/460V operation at 1770 RPM. Features TEFC enclosure, 213T frame, and 2.1 FLA. Specification P36G3503. Freight shipping required.
Manufacturing Part #
ECP3770T
Availability:
1
In stock
Product type:
Motors
- $2,228.26
- $2,228.26
- (-0%)
- Unit price
- per
Shipping Details
This heavy-duty item requires specialized freight shipping. Please note that additional freight charges apply and are to be paid by the customer.
Baldor Reliance ECP3770T 7.5 HP three-phase industrial motor rated for 230/460V operation at 1770 RPM. Features TEFC enclosure, 213T frame, and 2.1 FLA. Specification P36G3503. Freight shipping required.
| Manufacturer | Baldor-Reliance (ABB) |
| Part Number (MPN) | ECP3770T |
| Product Series | Super-E® Severe Duty (NEMA Premium) |
| Output @ Frequency | 7.50 HP @ 60 Hz |
| Phase | 3-Phase |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 Hz (4-Pole) |
| Full Load Speed | 1770 RPM |
| Voltage @ Frequency | 208-230 V @ 60 Hz / 460 V @ 60 Hz |
| Frame Size | 213T |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) - IP55 |
| Mounting | Rigid Base (Foot Mount) - F1 Assembly |
| Full Load Amps | 19.0 A @ 230 V / 9.5 A @ 460 V |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Efficiency @ 100% Load | 91.7% (NEMA Premium) |
| Power Factor | 81 (at 100% Load) |
| Bearings | Ball Bearing (6307 DE / 6307 ODE) - Regreasable |
| Frame Material | Cast Iron (Severe Duty Construction) |
| Inverter Ready | Yes (VPWM Inverter Ready, T3C or T4 Temp Code) |
| Net Weight | 170 lbs |
| Application | Severe Duty environments such as Chemical, Oil & Gas, Mining, Pulp & Paper, and Waste Management. |
