Product appearance may vary. Refer to the description and specs for complete information

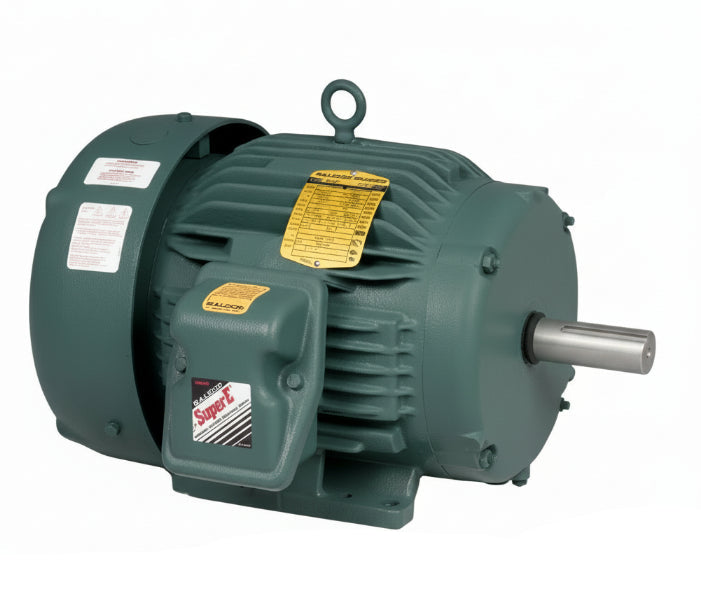

Baldor Reliance ECP3774T 10 HP industrial electric motor delivers reliable three-phase power at 1760 RPM. Features 230/460V dual voltage capability, TEFC enclosure for harsh environments, and 12.5A full load current. Frame 215T with 4-pole design. Freight shipping required.
Manufacturing Part #
ECP3774T
Availability:
1
In stock
Product type:
Motors
- $2,667.92
- $2,667.92
- (-0%)
- Unit price
- per
Shipping Details
This heavy-duty item requires specialized freight shipping. Please note that additional freight charges apply and are to be paid by the customer.
Baldor Reliance ECP3774T 10 HP industrial electric motor delivers reliable three-phase power at 1760 RPM. Features 230/460V dual voltage capability, TEFC enclosure for harsh environments, and 12.5A full load current. Frame 215T with 4-pole design. Freight shipping required.
| Manufacturer | Baldor-Reliance (ABB) |
| Part Number (MPN) | ECP3774T |
| Spec Number | 07K374X776G1 |
| Output @ Frequency | 10.00 HP @ 60 Hz |
| Phase | 3-Phase |
| Synchronous Speed @ Frequency | 1800 RPM @ 60 Hz (4-Pole) |
| Full Load Speed | 1760 RPM |
| Voltage @ Frequency | 230 V @ 60 Hz / 460 V @ 60 Hz |
| Frame Size | 215T |
| Enclosure Type | TEFC (Totally Enclosed Fan Cooled) - IP55 |
| Mounting | Rigid Base (Foot Mount) - F1 Assembly |
| Full Load Amps | 25.0 A @ 230 V / 12.5 A @ 460 V |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Efficiency @ 100% Load | 92.4% (NEMA Premium) |
| Power Factor | 82 (at 100% Load) |
| Bearings | Ball Bearing (6307 DE / 6307 ODE) - Regreasable |
| Frame Material | Cast Iron (Severe Duty Construction) |
| Inverter Ready | Yes (VPWM Inverter Ready, T3C Temp Code) |
| Net Weight | 231 lbs |
| Application | Severe Duty environments such as Chemical, Oil & Gas, Mining, Pulp & Paper, and Waste Management. |
