Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
601.1431.869
Availability:
4
In stock
Product type:
Cable Pull Switches
- $302.50
- $302.50
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer & Part Number |

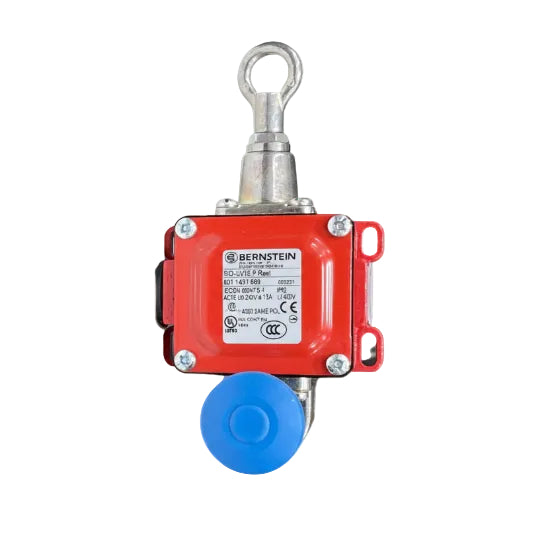

Bernstein 601.1431.869 (SID-UV1Z P-RAST)
|
| Product Type | Safety rope-pull switch with latch and reset button |
| Contact Configuration | 1NO + 1NC (Slow action, overlapping) |
| Housing Material | Aluminum die-cast |
| Actuator Type | Pull ring (Zinc die-cast) |
| Thermal Current | 16A |
| Insulation Voltage | 400V AC |
| IP Rating | IP65 |
| Mechanical Life | 1,000,000 operating cycles |
| Operating Temperature | -30°C to +80°C |
| Cable Entrance | 2 x M20 x 1.5 |
| Connection Type | 4 screw terminals (M4) |
