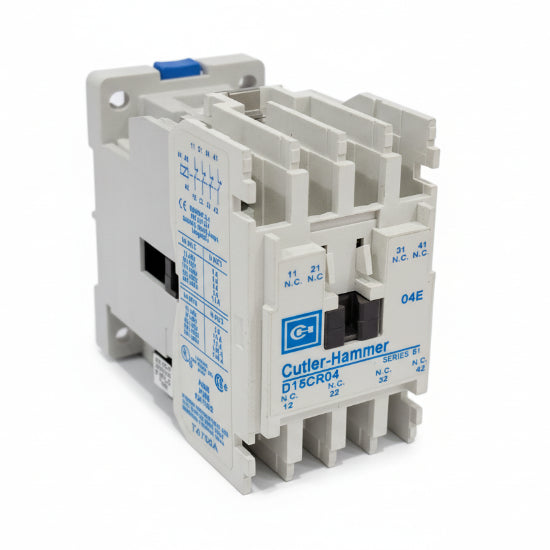

| Manufacturer Part Number | D15CR04 (plus voltage suffix) |
| Manufacturer | Eaton (Cutler-Hammer) |
| Contact Configuration | 4 NC (Normally Closed) |
| Number of Poles | 4-pole |
| Coil Voltage | Varies by suffix (e.g., AB: 120V AC; BB: 240V AC; TB: 24V AC) |
| Contact Current Rating | 10A (Operational Current) |
| Switching Capacity | 60A Make / 6A Break (at 600V AC) |
| Mounting Type | 35 mm DIN Rail or Base Screw Mount |
| Termination Style | Finger-safe, self-lifting pressure plate terminals |
