Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
GM01P4SP
Availability:
2
In stock
Product type:
Emergency Stop Switches
- $90.19
- $90.19
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100

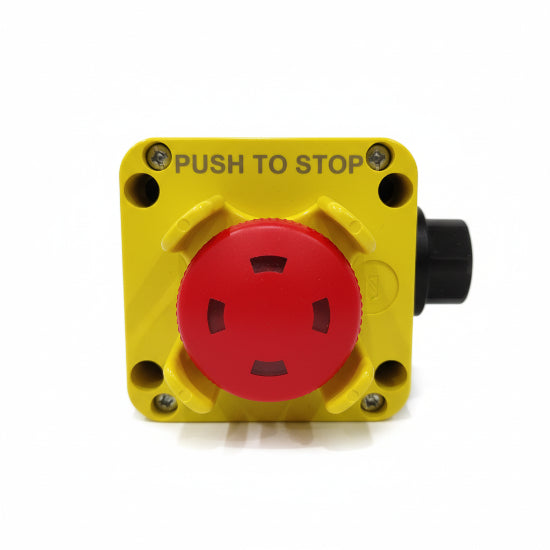

| Manufacturer & Part Number | Giovenzana International GM01P4SP |
| Function | Emergency Stop |
| Contact Configuration | 1NC + 1NO (Normally Closed + Normally Open) spring contacts |
| Push Button Diameter | 40 mm Mushroom Head |
| Rated Insulation Voltage | 690 V |
| Rated Impulse Voltage | 4 kV |
| Rated Thermal Current | 16 A |
| Rated Operating Current | 10 A |
| Protection Degree | IP65 (Watertight/Dust-tight) / NEMA 4X |
| Standards Compliance | EN81-20 & EN81-50 (Lift/Elevator technology) |
| Operating Temperature | -25°C to +70°C |
