Product appearance may vary. Refer to the description and specs for complete information

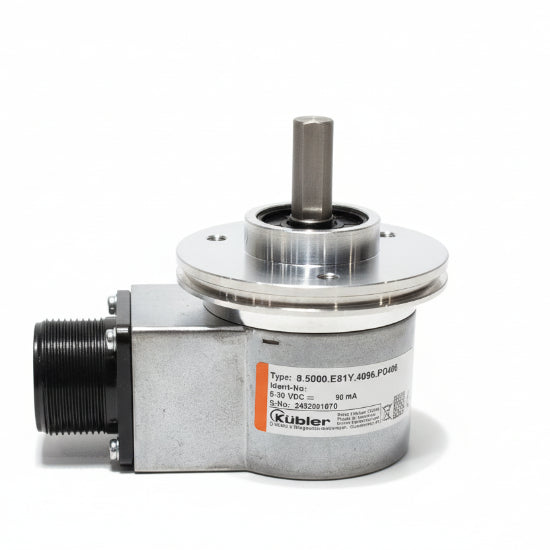

Manufacturing Part #
8.5000.E81Y.4096.P0406
Availability:
2
In stock
Product type:
Encoder
- $462.00
- $462.00
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer | Kübler Group (Germany) |
| Series (8.5000) | Sendix 5000 (Solid Shaft, 58mm Die-Cast Housing) |
| Flange Type (E) | Servo Flange (2.0-inch / 50.8 mm O.D.), IP67 Rated |
| Shaft Size (8) | 3/8-inch (0.375") x 7/8" Long Solid Shaft with Flat |
| Output Circuit (1) | RS422 Line Driver (5 to 30V DC Input / 5V Output) |
| Connection (Y) | Radial 10-Pin MIL-Spec Connector |
| Resolution (4096) | 4096 Pulses Per Revolution (PPR) |
| Modification (P0406) | Factory Custom (Specific OEM 10-Pin MIL Pinout) |
