Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
31L48TPS240
Availability:
2
In stock
Product type:
Time Delay Relays
- $114.00
- $114.00
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number |

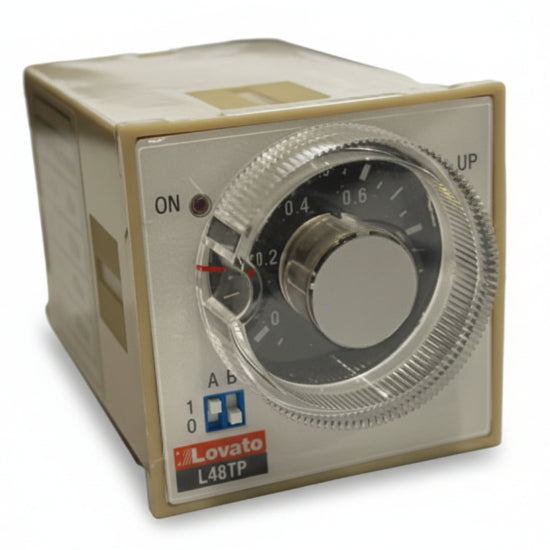

Lovato Electric 31L48TPS240
|
| Product Series | L48 Series (Model L48TP S) |
| Relay Type | Analog on-delay timing relay (multiscale and multivoltage) |
| Contact Configuration | 1 C/O (SPDT) changeover contact |
| Rated Supply Voltage | 24VAC/DC, 110VAC, and 220–240VAC (50/60 Hz) |
| Contact Current Rating | 5A resistive load (Ith) |
| Time Delay Range | Adjustable from 0.3 seconds to 780 minutes via DIP switches |
| Terminal Style | 8-pin plug-in connector |
| Mounting Style | Flush mounting or plug-in on an 8-pin base |
| Operating Temperature | -10°C to +60°C (14°F to 140°F) |
| Safety Features | IP40 front panel protection; self-extinguishing polyamide housing |
