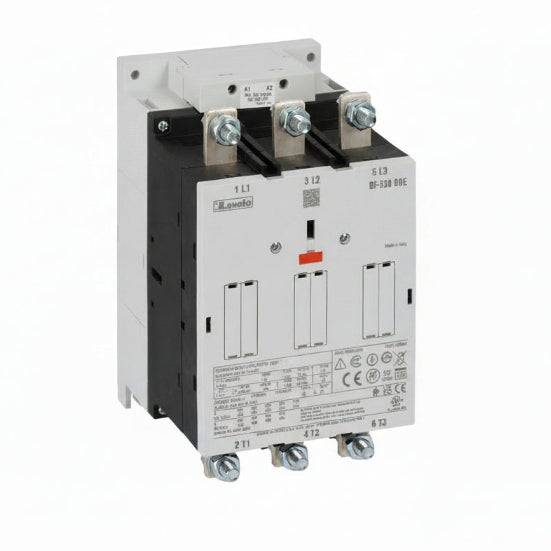

Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
BF33000E230
Availability:
1
In stock
Product type:
Contactor
- $2,156.00
- $2,156.00
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturing Part Number | BF33000E230 |
| Amperage Rating | 330 A (AC-3 motor switching at 400V); 500 A (AC-1 general purpose) |
| Coil Voltage | 100–250 VAC/DC wide-range electronic coil |
| Number of Poles | 3 main power poles (3NO) |
| Auxiliary Contacts | None integrated (can add up to eight external contacts) |
| Voltage Rating | 1000 V rated insulation voltage (Ui) |
| Power Rating | 160 kW at 400V; 250 HP at 480V (UL/CSA rating) |
| Termination Type | Screw terminals (terminal tightening torque of 35 Nm) |
| Mounting | Screw mounting |
| Standards & Certifications | UL Listed, CSA Certified, IEC, CE compliant |
