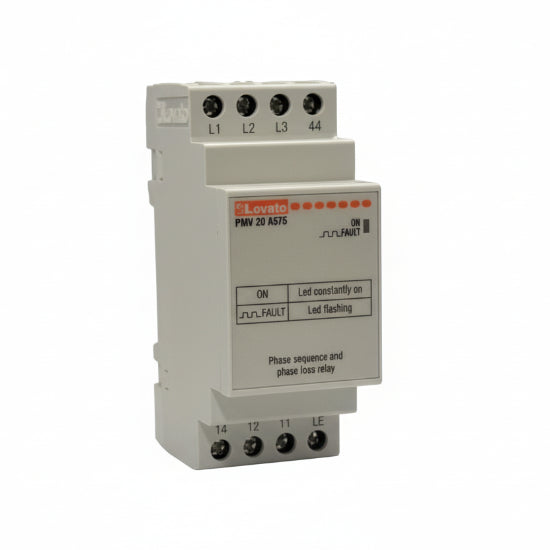

Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
PMV20A575
Availability:
2
In stock
Product type:
Time Delay Relays
- $110.00
- $110.00
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number | Lovato Electric PMV20A575 |
| Product Series | PMV Series Voltage Monitoring Relays |
| Monitoring Functions | Phase loss, incorrect phase sequence, and undervoltage |
| Rated Supply Voltage | 208–575V AC (Self-powered, 50/60 Hz) |
| Undervoltage Tripping | Adjustable from 70% to 95% of rated voltage |
| Contact Configuration | 1 C/O (SPDT) changeover contact |
| Contact Current Rating | 8A at 250V AC (Ith) |
| Tripping Delay | Fixed at 60ms for phase loss; approx. 0.5s for undervoltage |
| Terminal Type | Screw terminals (IP20 finger-safe protection) |
| Mounting Style | Standard 35mm DIN Rail mount |
| Local Signaling | Green LED (Power ON) and Red LED (Relay tripped/fault) |
