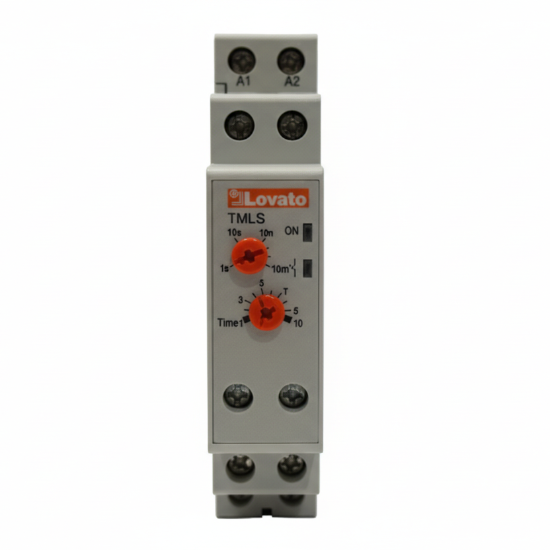

Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
TMLS
Availability:
6
In stock
Product type:
Time Delay Relays
- $88.00
- $88.00
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number | Lovato Electric TMLS |
| Product Series | TM Series Modular Time Relays |
| Relay Type | Asymmetrical Flashing Timer (Recycling) |
| Function | Independent adjustment of ON and OFF (Pause/Work) times |
| Timing Range | Multiscale adjustable from 0.1 seconds to 100 days |
| Contact Configuration | 1 C/O (SPDT) changeover contact |
| Rated Supply Voltage | 12–240V AC/DC at 50/60 Hz |
| Contact Current Rating | 8A (IEC Conventional free air thermal current Ith) |
| Terminal Type | Screw terminals (IP20 finger-safe protection) |
| Mounting Style | Standard 35mm DIN Rail or screw fixing |
| Status Indicators | Green LED (Power ON) and Red LED (Relay state/Timing) |
