Product appearance may vary. Refer to the description and specs for complete information

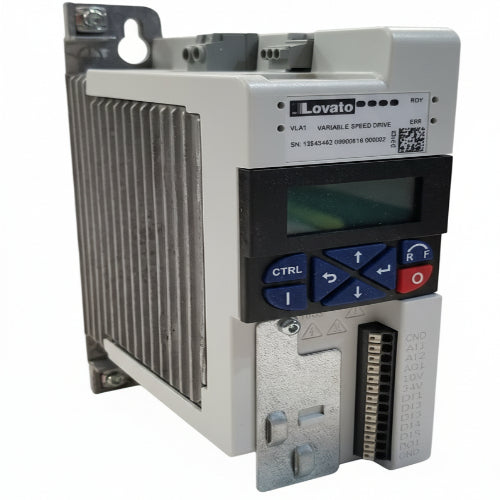

The Lovato Electric VLA104A240 variable speed drive is ideal for single-phase supply with a voltage of 240VAC and a frequency of 50/60Hz. It also features an EMC suppressor and is capable of supporting 0.5HP.
Manufacturing Part #
VLA104A240
Availability:
1
In stock
Product type:
Drives
- $380.41
- $380.41
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
The Lovato Electric VLA104A240 variable speed drive is ideal for single-phase supply with a voltage of 240VAC and a frequency of 50/60Hz. It also features an EMC suppressor and is capable of supporting 0.5HP.
| Specification | Value |
| Product Type | Variable Speed Drive (VSD) / AC Drive |
| Series | VLA1 |
| Input Phase | Single-Phase (1-Phase) |
| Input Voltage | 200–240 V AC (50/60 Hz) |
| Output Phase | Three-Phase (3-Phase) |
| Power Rating (kW / HP) | 0.4 kW / 0.5 HP |
| Nominal Output Current | 2.4 A |
| Overload Capacity | 150% for 60 seconds, 200% for 3 seconds |
| Max. Output Frequency | Up to 599 Hz |
| Control Modes | V/f (linear/quadratic), Sensorless Vector Control |
| EMC Filter | Built-in (Category C2) |
| Brake Chopper | No |
| Enclosure Rating | IP20 |
| I/O Points | 5 Digital Inputs, 2 Analog Inputs, 3 Outputs total |
