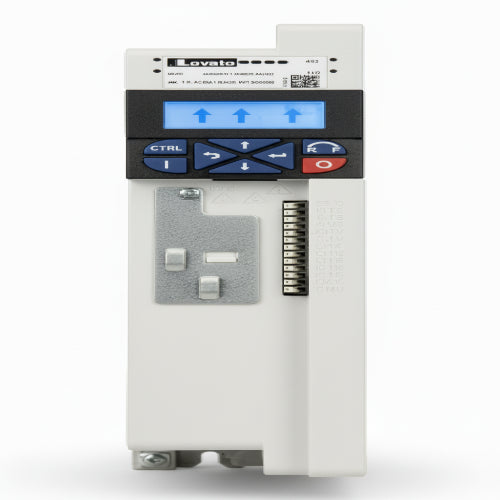

Product appearance may vary. Refer to the description and specs for complete information
The Lovato Electric VLA115A240 is a Variable Speed Drive with a Single-Phase Supply and a 240VAC 50/60Hz EMC Suppressor, capable of powering up to 2.0 horsepower.
Manufacturing Part #
VLA115A240
Availability:
1
In stock
Product type:
Drives
- $588.54
- $588.54
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
The Lovato Electric VLA115A240 is a Variable Speed Drive with a Single-Phase Supply and a 240VAC 50/60Hz EMC Suppressor, capable of powering up to 2.0 horsepower.
| Specification | Value |
| Product Type | Variable Speed Drive (VSD) / AC Drive |
| Series | VLA1 |
| Input Phase | Single-Phase (1-Phase) |
| Input Voltage | 200–240 V AC (50/60 Hz) |
| Output Phase | Three-Phase (3-Phase) |
| Power Rating (kW / HP) | 1.5 kW / 2.0 HP |
| Nominal Output Current | 7 A |
| Overload Capacity | 150% for 60 seconds, 200% for 3 seconds |
| Max. Output Frequency | Up to 599 Hz |
| Control Modes | V/f (linear/quadratic), Sensorless Vector Control |
| EMC Filter | Built-in (Category C2) |
| Brake Chopper | No |
| Enclosure Rating | IP20 |
| Digital I/O | 5 Inputs, 2 Outputs (including 1 changeover relay) |
| Analog I/O | 2 Inputs (V/mA), 1 Output (V/mA) |
