Product appearance may vary. Refer to the description and specs for complete information

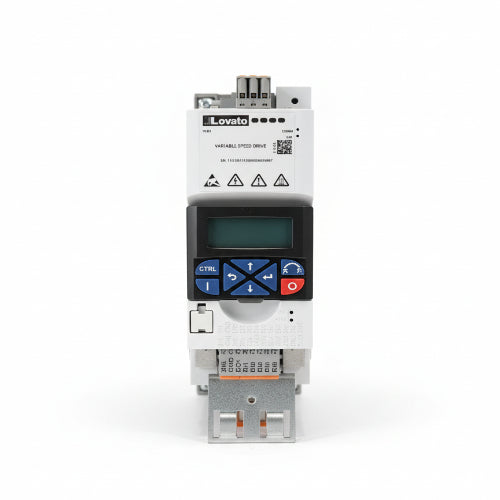

The Lovato Electric VLB30007A480 features a Three-Phase Supply of 480VAC at 50/60Hz and comes with an EMC Suppressor. This Variable Speed Drive is designed to provide precise control with 1.0HP of power.
Manufacturing Part #
VLB30007A480
Availability:
1
In stock
Product type:
Drives
- $792.00
- $792.00
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
The Lovato Electric VLB30007A480 features a Three-Phase Supply of 480VAC at 50/60Hz and comes with an EMC Suppressor. This Variable Speed Drive is designed to provide precise control with 1.0HP of power.
| Specification | Value |
| Product Type | Variable Speed Drive (VSD) / AC Drive |
| Series | VLB3 |
| Input Phase | Three-Phase (3-Phase) |
| Input Voltage | 400–480 V AC (50/60 Hz) |
| Output Phase | Three-Phase (3-Phase) |
| Power Rating (kW / HP) | 0.75 kW / 1.0 HP |
| Nominal Output Current | 2.4 A |
| Max. Output Frequency | Up to 599 Hz |
| Overload Capacity | 150% for 60 seconds |
| EMC Filter | Built-in (Category C1/C2) |
| Brake Chopper | Built-in (Discharge resistor required externally) |
| Enclosure Rating | IP20 |
| Communication | Built-in RS-485 (Modbus RTU), USB |
