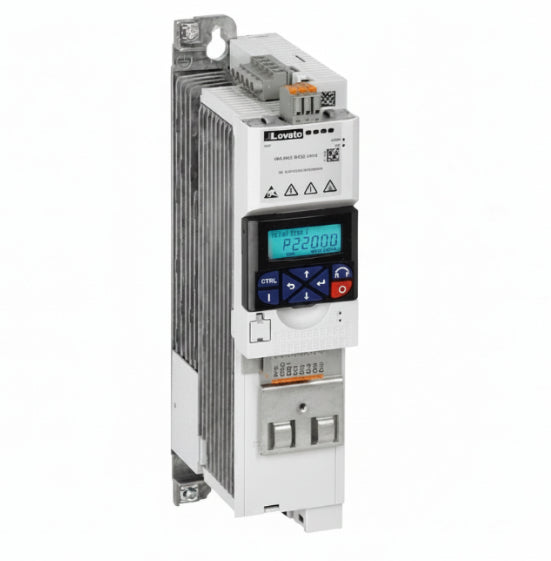

The LOVATO Electric VLB30015A480 is a Variable Speed Drive designed for use with a Three-Phase Supply and features an EMC Suppressor 480VAC at 50/60Hz, making it suitable for powering a 2.0HP motor.
Manufacturing Part #
VLB30015A480
Availability:
1
In stock
Product type:
Drives
- $874.50
- $874.50
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
The LOVATO Electric VLB30015A480 is a Variable Speed Drive designed for use with a Three-Phase Supply and features an EMC Suppressor 480VAC at 50/60Hz, making it suitable for powering a 2.0HP motor.
| Specification | Value |
| Product Type | Variable Speed Drive (VSD) / AC Drive |
| Series | VLB3 |
| Input Phase | Three-Phase (3-Phase) |
| Input Voltage | 400–480 V AC (50/60 Hz) |
| Output Phase | Three-Phase (3-Phase) |
| Power Rating (kW / HP) | 1.5 kW / 2.0 HP (Heavy Load/Constant Torque) |
| Nominal Output Current | 3.9 A |
| Overload Capacity | 150% for 60 seconds, 200% for 3 seconds |
| Brake Chopper | Built-in |
| EMC Filter | Built-in (Category C2) |
| Control Modes | V/f, Sensorless Vector Control, ECO mode |
| Communication | Built-in RS-485 (Modbus RTU), USB port |
| Enclosure Rating | IP20 |
