Product appearance may vary. Refer to the description and specs for complete information

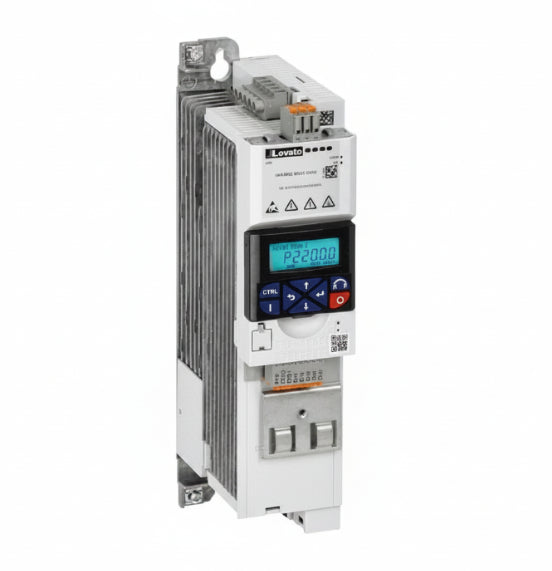

The LOVATO Electric VLB30022A480 is a versatile Variable Speed Drive that can operate on a Three-Phase Supply of 480VAC at 50/60Hz. This highly efficient drive is equipped with an EMC Suppressor and has a power output of 3.0HP.
Manufacturing Part #
VLB30022A480
Availability:
1
In stock
Product type:
Drives
- $1,039.50
- $1,039.50
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
The LOVATO Electric VLB30022A480 is a versatile Variable Speed Drive that can operate on a Three-Phase Supply of 480VAC at 50/60Hz. This highly efficient drive is equipped with an EMC Suppressor and has a power output of 3.0HP.
| Specification | Value |
| Product Type | Variable Speed Drive (VSD) / AC Drive |
| Series | VLB3 |
| Input Phase | Three-Phase (3-Phase) |
| Input Voltage | 400–480 V AC (50/60 Hz) |
| Output Phase | Three-Phase (3-Phase) |
| Power Rating (kW / HP) | 2.2 kW / 3.0 HP (Heavy Load/Constant Torque) |
| Nominal Output Current | 5.4 A |
| Overload Capacity | 150% for 60 seconds |
| Brake Chopper | Built-in (Requires external braking resistor) |
| EMC Filter | Built-in (Category C1/C2) |
| Control Modes | V/f, Sensorless Vector Control, ECO mode |
| Enclosure Rating | IP20 |
