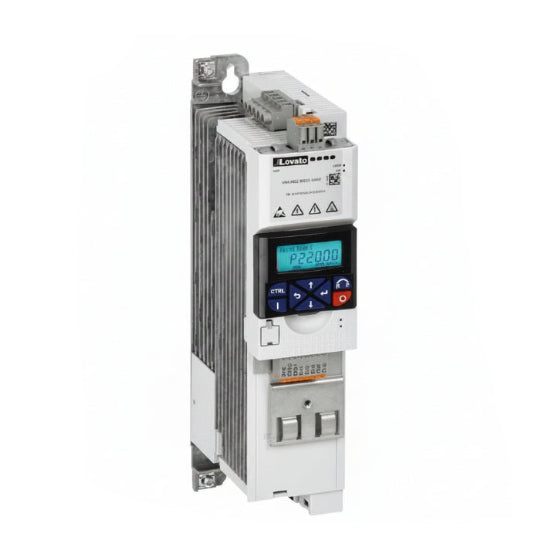

Product appearance may vary. Refer to the description and specs for complete information
The LOVATO Electric VLB30055A480 is a variable speed drive specifically designed for three-phase supply at 480VAC with a frequency of 50/60Hz. It also comes equipped with an EMC suppressor and has a maximum output power of 7.5HP.
Manufacturing Part #
VLB30055A480
Availability:
1
In stock
Product type:
Drives
- $1,518.00
- $1,518.00
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
The LOVATO Electric VLB30055A480 is a variable speed drive specifically designed for three-phase supply at 480VAC with a frequency of 50/60Hz. It also comes equipped with an EMC suppressor and has a maximum output power of 7.5HP.
| Specification | Value |
| Product Type | Variable Speed Drive (VSD) / AC Drive |
| Series | VLB3 |
| Input Phase | Three-Phase (3-Phase) |
| Input Voltage | 400–480 V AC (50/60 Hz) |
| Output Phase | Three-Phase (3-Phase) |
| Power Rating (kW / HP) | 5.5 kW / 7.5 HP (Heavy Load/Constant Torque) |
| Nominal Output Current | 13 A |
| Overload Capacity | 150% for 60 seconds (Heavy Load) |
| Brake Chopper | Built-in |
| EMC Filter | Built-in (Category C2) |
| Control Modes | V/f, Sensorless Vector Control, ECO mode |
| Communication | Built-in RS-485 (Modbus RTU), USB |
| Enclosure Rating | IP20 |
