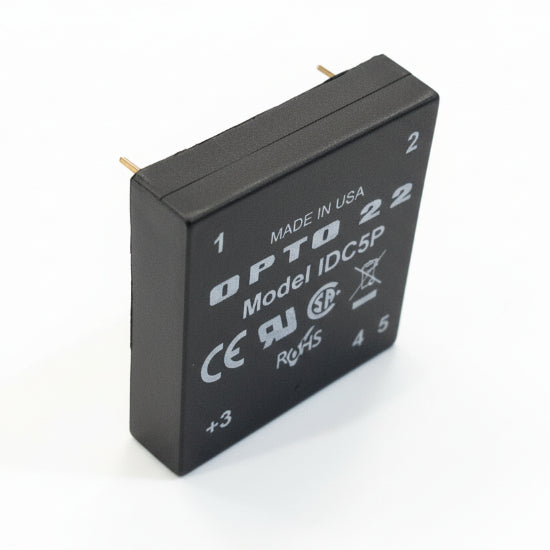

Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
IDC5P
Availability:
10
In stock
Product type:
Relay Accessories
- $38.49
- $38.49
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer & Part Number |
Opto 22 IDC5P
|
| Product Series | G1 I/O Family (Standard Digital I/O) |
| Module Type | AC/DC Input Module (Flat Pak) |
| Input Voltage Range | 10–32 VDC or 12–32 VAC |
| Logic Supply Voltage | 5 VDC Nominal (4.5–6.0 VDC range) |
| Logic Supply Current | 12 mA at nominal logic voltage |
| Input Current (Max) | 25 mA |
| Output Current | 50 mA |
| Turn-on / Turn-off Time | 5 ms / 5 ms |
| Optical Isolation | 4,000 Vrms (Input-to-output) |
| Operating Temperature | -30 °C to 70 °C |
| Standards | UL Listed, CSA Certified, CE Marked, RoHS Compliant |
