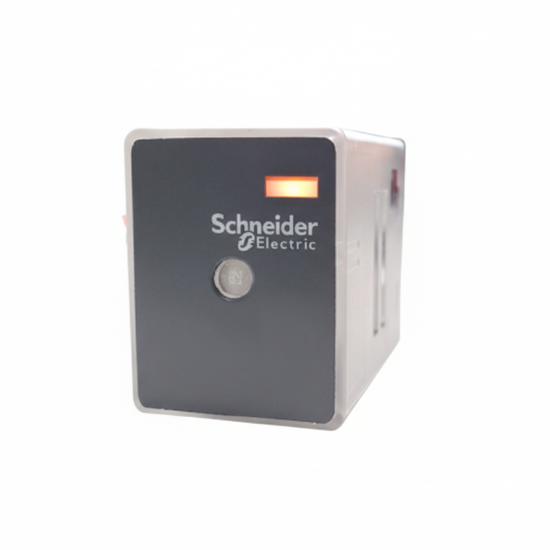

Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
782XBXC-120A
Availability:
11
In stock
Product type:
Power Relays
- $11.00
- $11.00
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number | 782XBXC-120A |
| Contact Configuration | DPDT (2 Form C / 2 NO + 2 NC) |
| Control Circuit Voltage | 120V AC (50/60 Hz) |
| Contact Current Rating | 15A at 120–277V AC / 15A at 28V DC |
| Coil Resistance | 4,430 Ohms (+/- 10% at 20°C) |
| Motor Power Rating | 0.5 hp at 120V AC / 1 hp at 277V AC |
| Mechanical Durability | 10,000,000 cycles |
| Electrical Durability | 100,000 cycles (at rated resistive load) |
| Terminal Type | Blade / Faston Terminals (Quick Connect) |
