Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
LRD06
Availability:
2
In stock
Product type:
Overload Relays
- $61.60
- $61.60
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100

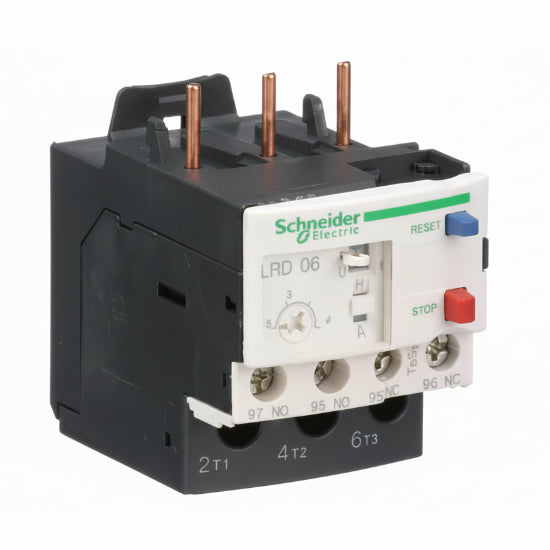

| Manufacturer Part Number | Schneider Electric LRD06 |
| Adjustment Range | 1.0 to 1.6 Amps |
| Trip Class | Class 10A (trips in 10s or less at 600% current) |
| Rated Operational Voltage | 690 V AC |
| Auxiliary Contacts | 1 NO + 1 NC |
| Compatible Contactors | TeSys D: LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 |
| Reset Options | Manual or Automatic (selectable via blue button) |
