Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
LRD08
Availability:
2
In stock
Product type:
Overload Relays
- $71.50
- $71.50
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number |

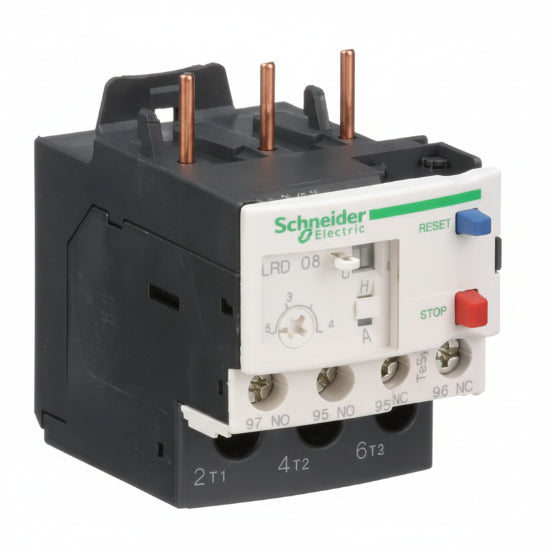

Schneider Electric LRD08
|
| Adjustment Range | 2.5 to 4.0 Amps |
| Trip Class | Class 10A |
| Rated Operational Voltage | 690 V AC (0...400 Hz) |
| Auxiliary Contacts | 1 NO + 1 NC |
| Compatible Contactors | TeSys D: LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38 |
| Reset Options | Manual or Automatic (selectable via blue button) |
| Protection Features | Phase failure detection and unbalance protection |
