Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
RE48AMH13MW
Availability:
3
In stock
Product type:
Time Delay Relays
- $132.00
- $132.00
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number |

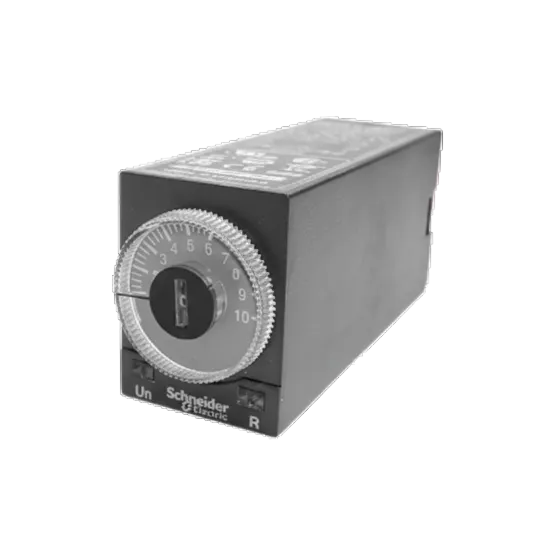

Schneider Electric RE48AMH13MW
|
| Product Series | Harmony Timer Relays (formerly Zelio Time) |
| Relay Type | Panel-mounted or plug-in multifunction relay |
| Number of Functions | 4 selectable functions (A1, A2, H1, H2) |
| Contact Configuration | 2 C/O (DPDT); can be configured as 2 timed or 1 timed + 1 instantaneous |
| Rated Supply Voltage | 24–240V AC/DC (50/60 Hz) |
| Contact Current Rating | 5A resistive load |
| Time Delay Range | Adjustable from 0.02 seconds to 300 hours |
| Local Signaling | 2 LEDs: Green (power/timing status) and Yellow (output relay state) |
| Safety Features | IP40 housing and IP50 front face; self-extinguishing material |
| Operating Temperature | -20°C to +50°C (-4°F to 122°F) |
