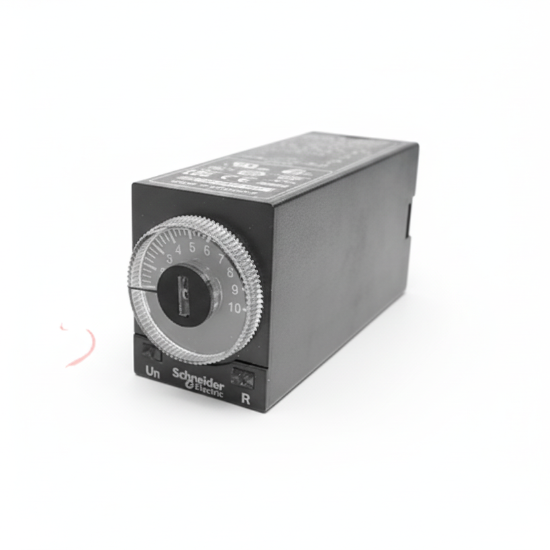

Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
RE48AML12MW
Availability:
6
In stock
Product type:
Time Delay Relays
- $121.00
- $121.00
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number |
Schneider Electric RE48AML12MW
|
| Product Series | Harmony Timer Relays (formerly Zelio Time) |
| Relay Type | Electronic multifunction timing relay |
| Timing Functions | 4 functions: On-delay (A), Interval (B), Off-delay (C), and Symmetrical flashing (Di) |
| Timing Range | Adjustable from 0.02 seconds to 300 hours |
| Contact Configuration | 2 C/O (DPDT); timed contacts |
| Rated Supply Voltage | 24–240V AC/DC at 50/60 Hz |
| Contact Current Rating | 5A resistive load |
| Terminal Type | 11-pin plug-in connector |
| Mounting Style | Panel mount or socket plug-in |
| Status Indicators | 2 LEDs: Green (timing/power) and Yellow (output state) |
| Protection Rating | IP40 (housing) and IP50 (front face) |
