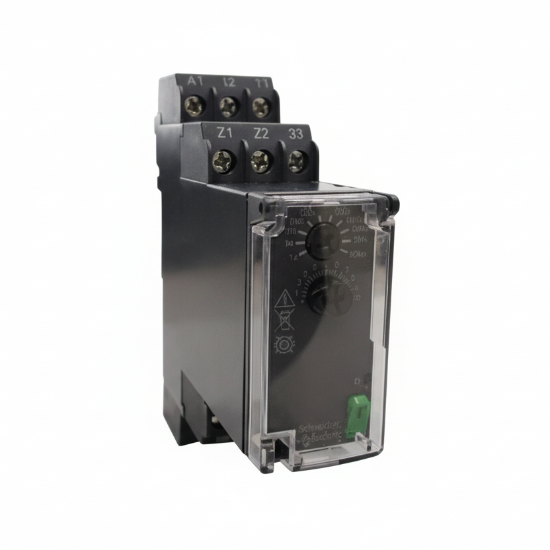

Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
RE17RMJU
Availability:
4
In stock
Product type:
Time Delay Relays
- $99.00
- $99.00
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number |
Schneider Electric RE17RMJU
|
| Product Series | Harmony Timer Relays (RE17 Series) |
| Relay Type | Multifunction modular timing relay |
| Timing Functions | 10 selectable functions (A, Ac, At, B, Bw, C, D, Di, H, Ht) |
| Timing Range | Adjustable from 0.1 seconds to 100 hours |
| Contact Configuration | 1 C/O (SPDT) changeover contact |
| Rated Supply Voltage | 12V AC/DC at 50/60 Hz |
| Contact Current Rating | 8A resistive load |
| Terminal Type | Screw terminals (IP20 protection) |
| Mounting Style | Standard 35mm DIN Rail |
| Status Indicators | LED indicators: Steady (energized), Flashing (timing), Pulsing (de-energized) |
