Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #

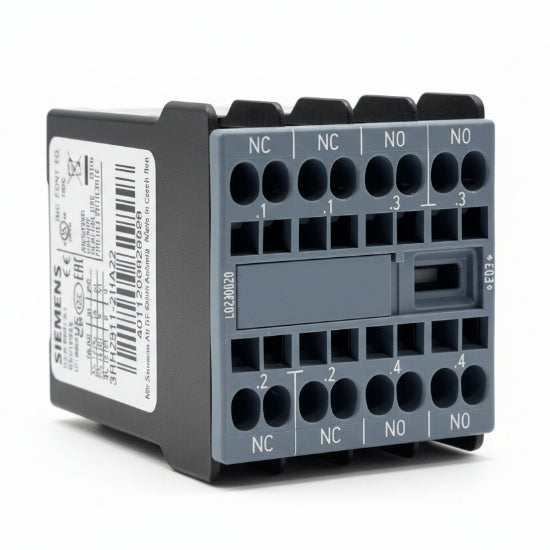

3RH2911-2HA22
Availability:
19
In stock
Product type:
Auxiliary Contacts
- $24.20
- $24.20
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number | 3RH2911-2HA22 |
| Contact Configuration | 2 NO + 2 NC |
| Mounting Type | Front-mounting, Snap-on |
| Terminal Type | Spring-type terminals (Cage Clamp) |
| Rated Operational Current (Ie) | 10 A (AC-12), 6 A (AC-15 at 230 V) |
| Insulation Voltage (Ui) | 690 V |
| Mechanical Service Life | 10,000,000 switching cycles |
| Protection Class | IP20 (front side) |
| Compatibility | SIRIUS 3RT2 contactors and 3RH2 relays (Sizes S00 to S3) |
| Operating Temperature | -25 °C to +60 °C |
