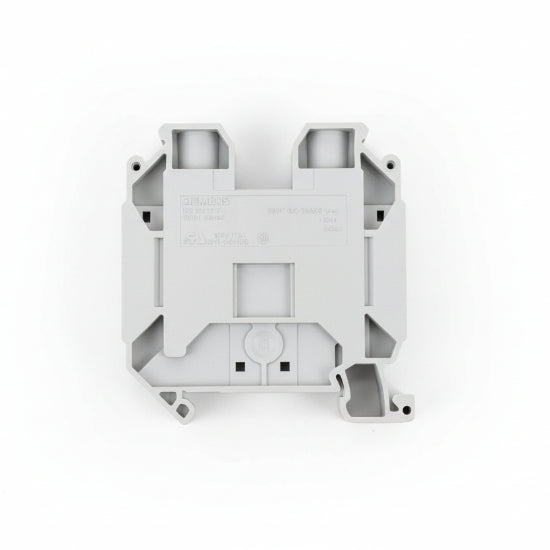

Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
8WH1000-0AM00
Availability:
44
In stock
Product type:
Terminal Blocks
- $10.45
- $10.45
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer Part Number | 8WH1000-0AM00 |
| Product Type | Feed-Through Single Level Terminal Block |
| Series | SENTRON / ALPHA FIX 8WH1 |
| Current Rating | 125 Amps (150A max per some IEC standards) |
| Voltage Rating | 1000 V |
| Wire Gauge Range | 1.5 to 35 mm² (approx. #16 AWG to #1/0 AWG) |
| Connection Type | Screw Terminal (Lateral position) |
| Mounting | 35mm DIN Rail (TH35) |
| Tightening Torque | 3.2 to 3.7 N·m |
| Material / Color | Thermoplastic / Gray |
| Flammability Class | UL 94 V0 |
