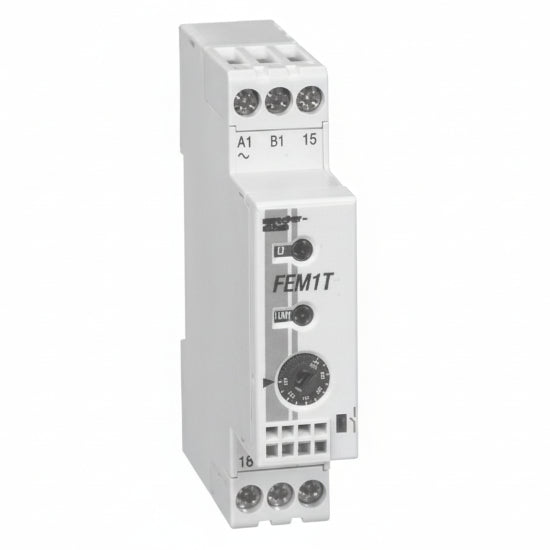

Product appearance may vary. Refer to the description and specs for complete information
Manufacturing Part #
RZ7-FEM1TU22
Availability:
2
In stock
Product type:
Time Delay Relays
- $121.00
- $121.00
- (-0%)
- Unit price
- per
Free standard shipping on orders over $100
| Manufacturer & Part Number | Sprecher+Schuh / RZ7-FEM1TU22 |
| Product Series | RZ7-FE Series Electronic Timing Relays |
| Relay Function | Multifunction (7 Selectable Functions) |
| Timing Functions | On-Delay, Off-Delay, One-Shot, Flasher (Start with Pause/Work), and more |
| Contact Configuration | 1 NO (Normally Open) contact |
| Multi-Timing Range | Adjustable from 0.05 seconds to 10 hours |
| Rated Supply Voltage | 24V AC/DC and 110–240V AC (50/60 Hz) |
| Contact Current Rating | 5A (Resistive load AC-1 at 250V) |
| Indicator Type | Bicolored LED for power status and timing state |
| Termination Style | Screw terminals (IP20 finger-safe protection) |
| Mounting Style | Standard 35mm DIN Rail or surface mount |
